Can only ship to USA address!
Save 10% when purchased with turntable or ANY other brand cartridge trade |
$427.50 |
Save 30% re-tip exchange |
$332.50 |
Save on Hana Cartridges from October 1 - January 31, 2023!
30% re-tip exchange |
$332.50 |
Trade instructions: If you purchase this cartridge with a trade-in, please note when you check out your total will show the normal sale price of this item and NOT the trade in price. However, when we process your order, you will be charged ONLY the trade in price. When you have received your new Hana cartridge, please carefully pack and ship your trade-in cartridge to us (see our website for address)

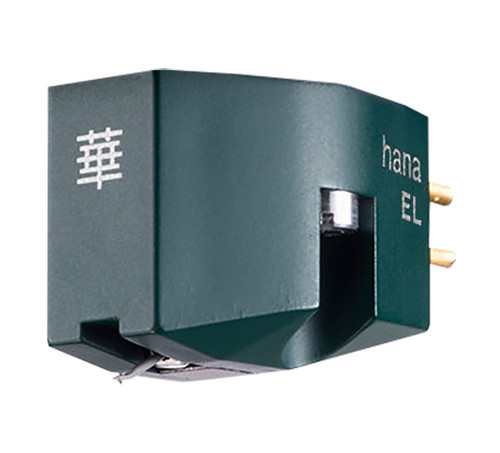

The Hana EL provides high-end musical performance from a low-output moving coil cartridge at an extremely attractive price. Handmade in Japan, the EL uses ALNICO magnets and affords the listener the textural, imaging, and musically involving qualities associated with the best MC cartridges.
Long prized by audiophiles and music lovers, affordable low output MCs such as the EL are a perfect match to today's generation of high-gain phono stages.
Technical Specifications
Body
Material |
ABS |
Finish |
Painted |
Cantilever Assembly
Cantilever |
Aluminum |
Stylus |
Synthetic Elliptical |
Armature Material |
Permalloy |
Armature Shape |
Cross |
Magnetic Circuit
Parts Material |
Pure Iron |
Magnet |
Alnico |
Terminal Plate |
ABS |
Terminal Pin |
Gold Plated |
Coil
Coil Impedance |
30Ω/1KHz |
Output |
0.5mv/1KHz |
Coil Wire Material |
4N Copper |
Terminating Impedance |
> 400Ω |
Treatment
Specification
Frequency Response |
15-25,000Hz |
Output Balance |
<2dB/1KHz |
Channel Separation |
25dB/1KHz |
Tracking Force Weight |
2g |
Trackability |
70μm/2g |
Dynamic Compliance |
10 x 10(-6) cm/dyne (100Hz) estimated 16 x 10(-6) cm/dyne (10Hz) |
Cartridge Weight |
5g |
