Brand: Hana

Share:

Hana SL Shibata MC Cartridge 0.5mV

$599.99

Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:
HANASL
UPC:
HANASL
Adding to cart… The item has been added

Can only ship to USA address!

Re-tip exchange $525.00

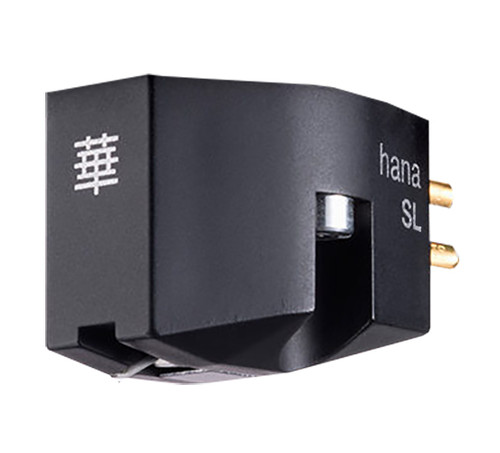

The Hana SL is the most reviewed and awarded Hana cartridge to date. It is distinguished by its black body and a Shibata stylus expertly mounted to its aluminum cantilever. The Hana SL features tighter channel balance, greater channel separation, and improved high-frequency extension.

Remarkably smooth frequency response...terrific value for the money.
-HiFi World (UK)
In the same class as a cartridge costing 10x the price.
-TNT Audio (France)

Technical Specifications

Body

Material ABS
Finish Painted

Cantilever Assembly

Cantilever Aluminum
Stylus Shibata Nude Diamond
Armature Material Permalloy
Armature Shape Cross

Magnetic Circuit

Parts Material Pure Iron
Magnet Alnico
Terminal Plate ABS
Terminal Pin Gold Plated

Coil

Coil Impedance 30Ω/1KHz
Output 0.5mv/1KHz
Coil Wire Material 4N Copper
Terminating Impedance > 400Ω

Treatment

Cryogenic None

Specification

Frequency Response 15-32,000Hz
Output Balance <1.5dB/1KHz
Channel Separation 28dB/1KHz
Tracking Force Weight 2g
Trackability 70μm/2g
Dynamic Compliance 10 x 10(-6) cm/dyne (100Hz)
estimated 16 x 10(-6) cm/dyne (10Hz)
Cartridge Weight 5g
