Brand: M2TECH

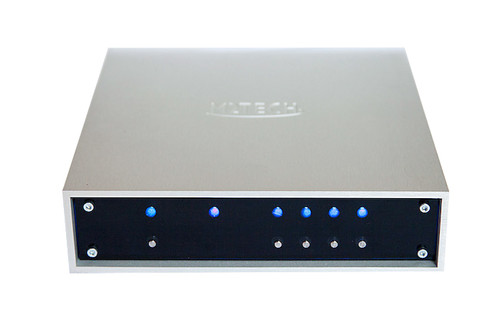

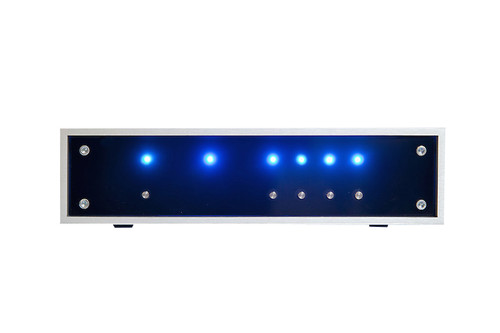

M2TECH Van der Graaf 4 Device Low Noise Sequential Power Supply

Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
Van der Graaf is a very high performance, very low noise power supply suitable to power all M2Tech products!

Thanks to its comprehensive outputs set and the settable output voltage for some outputs, user can power every M2Tech product, from 9V Evo units to 15V products like Young DSD and Joplin ADC, to the high-power Marley. The Van der Graaf's very low output noise (comparable to that of a Li-Ion battery), even at rated load, allows for incredibly silent sonic background and finest detail resolution, markedly improving every powered product's performance. Fault-proof robustness is achieved by solid-state, automatically resettable fuses (polyswitch). In order to optimize the powering sequence of the units connected to the Van der Graaf, the user can program the activation sequence of the used outputs.

• 4 Device Programmable Linear Power Supply
• Very low noise
• Discrete components regulators
• Selectable output voltage on some outputs
• Activation and shut-down programmable sequence
• Universal voltage input


Output Voltage:
9V or 15V (outputs 1 and 2)
+5V/+15V/-15V (outputs 3 and 4)

Output current:
500mA (outputs 1 or 2)
500mA (5V, outputs 3 or 4)
1A (+/-15V, outputs 3 or 4)*

Noise: 2.9uVrms (20Hz-20kHz bandwidth, A-weighted, rated load)

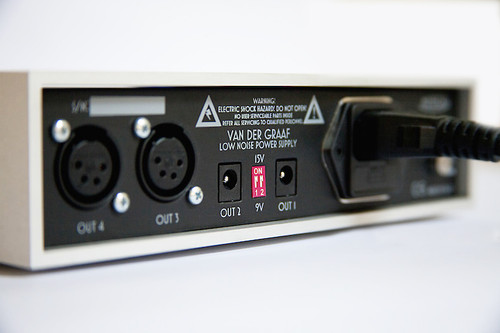

5.5/2.1mm jack, positive on tip (outputs 1 and 2)
4-pin female XLR (outputs 3 and 4)

Input voltage: 90-260VAC, 50/60Hz
Power consumption: 60VA
Fuse: 2.5A slow blow
Input: IEC mains socket with EMI filter and fuse holder
Output voltage selection: by DIP-switches on back panel
Outputs enable: sequence set by user
Outputs disable: reverse sequence
Size: 200x200x50mm (w x d x h)
Weight: 2.2kg

* Total current outputs 1 and 2: 1.5A

Click Here for the M2TECH Van der Graaf Power Supply manual!
