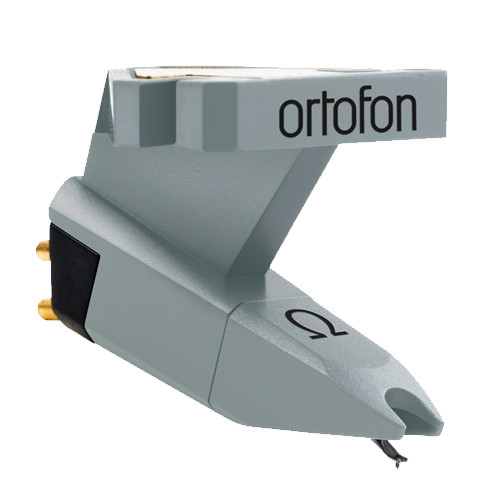

The Ortofon Omega MM cartridge is a standard-mount cartridge for true high-fidelity sound reproduction.
It's a perfect match for standard USB turntables, fits a wide range of modern and vintage turntables. Omega uses a standard elliptical diamond and is a very reliable cartridge with a characteristic for Ortofon accurate sound.
The Omega provides upgraded sound quality in a cost-effective package.
Specifications:
Output voltage at 1000 Hz, 5cm/sec: 4 mV
Channel balance at 1 kHz : 2 dB
Channel separation at 1 kHz : 22 dB
Channel separation at 15 kHz : 15 dB
Frequency response : 20-21.000 Hz
Stylus type : Elliptical
Stylus tip radius : r/R 8/18 µm
Tracking force range: 1,5-2,0 g (15-20 mN)
Tracking force, recommended: 1,75 g (17,5 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistanc : 47 kOhm
Cartridge weight: 5 g (additional weight incl.)
1 Year Warranty
