Following the long-term success of the Tube Box S2 and Tube Box DS2 comes the incredible new Tube Box DS3 B True Balanced phono preamp.

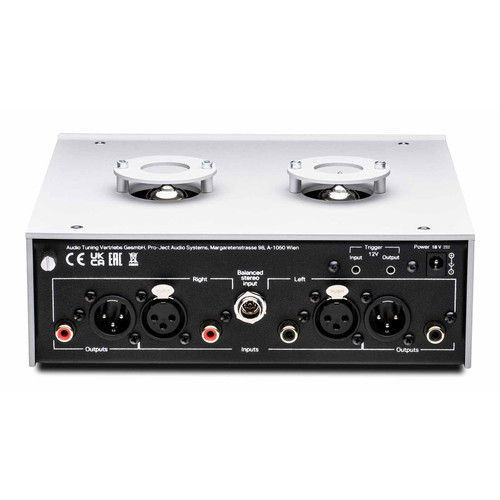

The Tube Box DS3 B features both single-ended RCA and Balanced XLR inputs along with single-ended RCA and Balanced XLR outputs. For best results, connect a moving coil cartridge via the Balanced XLR input and then connect the Balanced XLR outputs to your Balanced system. The RCA and XLR inputs feature separate memory for setting the impedance, capacitance, gain and subsonic filter.
Both outputs are always active, so you could even run a local system via the RCA outputs, then run long XLR cables to a remote system. This is a perfect solution for distributed audio systems when you want the turntable in a convenient location.
The best part is that Pro-Ject still thinks value is an important element to consider when designing a new product. The Tube Box DS3 B retails for just $1,099, so another class-leading performer! Order for delivery soon!
Features
- Suitable for MM and MC cartridges
- 2 Inputs and 2 Outputs (RCA + XLR)
- 6922/E88CC Tubes in the Gain Stage
- Precise RIAA Equalization
- Dual Mono Circuitry for Optimized Channel Separation
- Selectable Input Impedance on Front
- Selectable Input Capacitance on Front
- Digital Output Sampling Frequency Adjustable
- Low Noise Circuitry
- Gold-Plated RCA In & Outputs
- Sandwich Alu/Metal Casing Protects from Vibrations & Electromagnetic Interference
Technical Specifications
| Input impedance | Stepless 10 - 1000 ohms or fix 47kOhms |
|---|---|
| Input capacitance | 50, 150, 300, 400 pF |
| Gain (+ 6dB using XLR Out sockets) | 40, 45, 50, 55, 60, 65 dB |
| Signal / Noise ratio MM (40dB) | 104dBV, 111dBV - 'A' weighted |
| Signal / Noise ratio MC (60dB) | 85dBV, 91dBV - 'A' weighted |
| THD at 1 kHz | <0,001% MM, < 0,004% MC |
| THD (20Hz-20kHz) | <0,005% MM, < 0,01% MC |
| RIAA-equalization curve accuracy | < 0,25dB / 20Hz - 20kHz |
| Subsonic filter | at 20Hz with 18dB/octave |
| Input | 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono |
| Line-level output | 1x pair RCA, 1x pair XLR |
| Wiring XLR sockets | 1 ground, 2 "hot" and 3 "cold" |
| Trigger In/Out | 12V on/off detector |
| Power supply DC | 18V/500mA |
| Power consumption | 18V/max.290mA DC, <0.5 W standby |
| Dimensions | 206 x 72 x 194 (205 with sockets) mm |
| Weight | 1480g without power supply |
