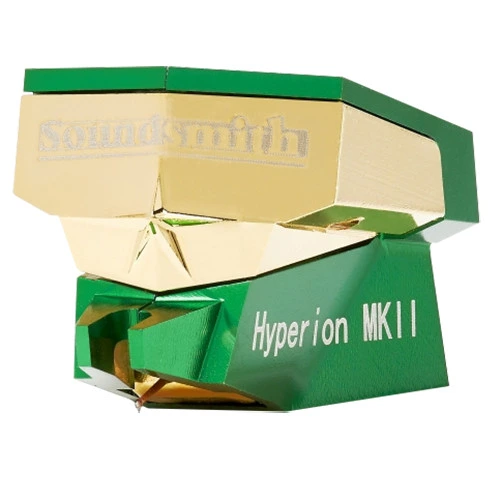

Soundsmith Hyperion MKII ES Cartridge 0.4mV (OC-CL Stylus, Low Compliance)
Soundsmith Hyperion MKII ES Cartridge 0.4mV (OC-CL Stylus, Low Compliance)

Share:

Soundsmith Hyperion MKII ES Cartridge 0.4mV (OC-CL Stylus, Low Compliance)

$7,999.95



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
SSMIHYPE2ESOCL
UPC:
SSMIHYPESOCL

Made in the USA.

Rebuild done by Soundsmith directly!
$850 ~ Only 20% (or less) of MSRP, as always!
Click here to fill out Soundsmith's Cartridge Rebuild Form

10 year warranty to the original owner.

The HYPERION is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at Hi-Fi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermann's radical design utilizes an actual "cactus spine" for the cantilever. The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength. Also available in a Dual Compliance Design for older Linear Tracking turntables as the HYPERION LT. The Hyperions are offered with a choice of CL or OC-CL stylus. Each one is hand-crafted by Peter Ledermann. The Hyperion features an industry first: A 10 year free retipping service for stylus wear to the original owner.

Also available in dual-coil mono.

New ES Series DEMS Design

2018's RMAF show was the official launch of Soundsmith's new ES series of cartridges, where the attendees experienced the latest exploration into overlooked areas of cartridge design and solutions from Soundsmith.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls -- a critically important technical refinement. Increased liquidity and reduced "grain," without loss of detail are some of the immediately discernible advantages of Soundsmith's new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems.

Every cartridge in Soundsmith's lineup will now feature their sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and "boxy" design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely affecting performance. Peter says, "Think of how singing in an open field compares with singing in a shower." Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.

Technical Specifications

Type Fixed Coil / Moving Iron
Mount Standard ½"
Stylus Contact Line, Nude, 0.10 mm square
Radius of Curvature Contact Line or Optimized Contact Line
Cantilever Hand formed/treated selected Cactus "Spine"
Recommended Tracking Force 1.8 - 2.2 g
Effective Tip Mass 0.30 mg
Compliance 12 μm/mN vertical, 7 μm/mN horizontal
10 μm/mN (LT version)
Frequence Response 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz > 36 dB
> 34 dB (LT version)
N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz > 25 dB
N/A (Mono version)
Channel Difference < 0.5 dB
< 1.0 dB (Mono version)
Output Voltage @ 5cm/sec > 0.40 mV
DC Resistance (DCR) 10Ω
Coil Inductance per channel 2.75 mH
Suggested Preamp Gain 58 - 64 dB
Cartridge Weight 12.2 g (ES series)
Recommended Load Resistance ≥ 470Ω
Recommended Load Capacitance n/a
Description

Made in the USA.

Rebuild done by Soundsmith directly!
$850 ~ Only 20% (or less) of MSRP, as always!
Click here to fill out Soundsmith's Cartridge Rebuild Form

10 year warranty to the original owner.

The HYPERION is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at Hi-Fi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermann's radical design utilizes an actual "cactus spine" for the cantilever. The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength. Also available in a Dual Compliance Design for older Linear Tracking turntables as the HYPERION LT. The Hyperions are offered with a choice of CL or OC-CL stylus. Each one is hand-crafted by Peter Ledermann. The Hyperion features an industry first: A 10 year free retipping service for stylus wear to the original owner.

Also available in dual-coil mono.

New ES Series DEMS Design

2018's RMAF show was the official launch of Soundsmith's new ES series of cartridges, where the attendees experienced the latest exploration into overlooked areas of cartridge design and solutions from Soundsmith.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls -- a critically important technical refinement. Increased liquidity and reduced "grain," without loss of detail are some of the immediately discernible advantages of Soundsmith's new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems.

Every cartridge in Soundsmith's lineup will now feature their sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and "boxy" design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely affecting performance. Peter says, "Think of how singing in an open field compares with singing in a shower." Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.

Technical Specifications

Type Fixed Coil / Moving Iron
Mount Standard ½"
Stylus Contact Line, Nude, 0.10 mm square
Radius of Curvature Contact Line or Optimized Contact Line
Cantilever Hand formed/treated selected Cactus "Spine"
Recommended Tracking Force 1.8 - 2.2 g
Effective Tip Mass 0.30 mg
Compliance 12 μm/mN vertical, 7 μm/mN horizontal
10 μm/mN (LT version)
Frequence Response 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz > 36 dB
> 34 dB (LT version)
N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz > 25 dB
N/A (Mono version)
Channel Difference < 0.5 dB
< 1.0 dB (Mono version)
Output Voltage @ 5cm/sec > 0.40 mV
DC Resistance (DCR) 10Ω
Coil Inductance per channel 2.75 mH
Suggested Preamp Gain 58 - 64 dB
Cartridge Weight 12.2 g (ES series)
Recommended Load Resistance ≥ 470Ω
Recommended Load Capacitance n/a
