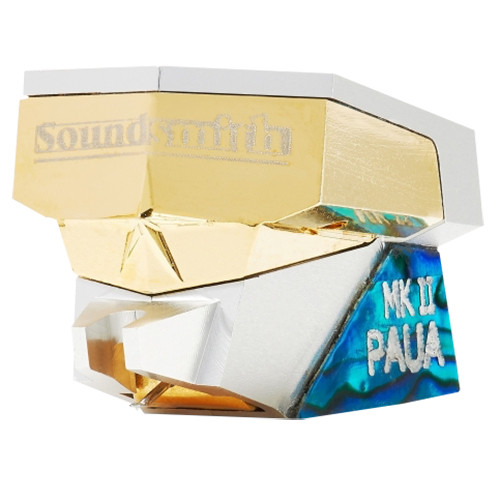

Soundsmith Paua MkII ES Cartridge 0.4mV (CL Stylus, Low Compliance)
Soundsmith Paua MkII ES Cartridge 0.4mV (CL Stylus, Low Compliance)

Share:

Soundsmith Paua MkII ES Cartridge 0.4mV (CL Stylus, Low Compliance)

$3,999.95



Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
SSMIPAU2ESCL
UPC:
SSMIPAU2ESCL

Made in the USA.

Rebuild done by Soundsmith directly!
$550 ~ Only 20% (or less) of MSRP, as always!
Click here to fill out Soundsmith's Cartridge Rebuild Form

2 year warranty to the original owner.

The NEW Paua MKII: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.

The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an "Editor's Choice Award" in 2015 from TAS. Now Soundsmith introduces the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII's cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The reult is an even better Paua, a cartridge that gets raves from its owners, and can be fully rebuilt many times for $550 - a fraction of its original cost - as with all Soundsmith cartridges - 20% or less.

Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.

Soundsmith has accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.

Also available in dual-coil mono, as with all Soundsmith Fixed Coil designs.

When the needle dropped on the lead groove, it started showing off immediately. The Paua II was giving me more image solidity than I'd heard before. Images were more three dimensional and alive, more palpable.

New ES Series DEMS Design

2018's RMAF show was the official launch of Soundsmith's new ES series of cartridges, where the attendees experienced the latest exploration into overlooked areas of cartridge design and solutions from Soundsmith.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls -- a critically important technical refinement. Increased liquidity and reduced "grain," without loss of detail are some of the immediately discernible advantages of Soundsmith's new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems.

Every cartridge in Soundsmith's lineup will now feature their sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and "boxy" design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely affecting performance. Peter says, "Think of how singing in an open field compares with singing in a shower." Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.

Technical Specifications

Type Fixed Coil / Moving Iron
Mount Standard ½"
Stylus Contact Line, Nude, 0.10 mm square
Radius of Curvature Nude Contact Line SELECTED
Cantilever Telescoping Aluminum Alloy
Recommended Tracking Force 1.7 - 1.9 g
Effective Tip Mass 0.30 mg
Compliance 10 µm/mN
Frequence Response 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz > 34 dB
N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz > 25 dB
N/A (Mono version)
Channel Difference < 0.5 dB
< 1.0 dB (Mono version)
Output Voltage @ 5cm/sec > 0.40 mV (LOW)
DC Resistance (DCR) 10Ω
Coil Inductance per channel 2.75 mH
Suggested Preamp Gain 58 - 64 dB
Cartridge Weight 12.2 g (ES series)
Recommended Load Resistance ≥ 470Ω
Recommended Load Capacitance n/a
Description

Made in the USA.

Rebuild done by Soundsmith directly!
$550 ~ Only 20% (or less) of MSRP, as always!
Click here to fill out Soundsmith's Cartridge Rebuild Form

2 year warranty to the original owner.

The NEW Paua MKII: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.

The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an "Editor's Choice Award" in 2015 from TAS. Now Soundsmith introduces the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII's cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The reult is an even better Paua, a cartridge that gets raves from its owners, and can be fully rebuilt many times for $550 - a fraction of its original cost - as with all Soundsmith cartridges - 20% or less.

Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.

Soundsmith has accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.

Also available in dual-coil mono, as with all Soundsmith Fixed Coil designs.

When the needle dropped on the lead groove, it started showing off immediately. The Paua II was giving me more image solidity than I'd heard before. Images were more three dimensional and alive, more palpable.

New ES Series DEMS Design

2018's RMAF show was the official launch of Soundsmith's new ES series of cartridges, where the attendees experienced the latest exploration into overlooked areas of cartridge design and solutions from Soundsmith.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls -- a critically important technical refinement. Increased liquidity and reduced "grain," without loss of detail are some of the immediately discernible advantages of Soundsmith's new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems.

Every cartridge in Soundsmith's lineup will now feature their sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and "boxy" design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely affecting performance. Peter says, "Think of how singing in an open field compares with singing in a shower." Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.

Technical Specifications

Type Fixed Coil / Moving Iron
Mount Standard ½"
Stylus Contact Line, Nude, 0.10 mm square
Radius of Curvature Nude Contact Line SELECTED
Cantilever Telescoping Aluminum Alloy
Recommended Tracking Force 1.7 - 1.9 g
Effective Tip Mass 0.30 mg
Compliance 10 µm/mN
Frequence Response 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz > 34 dB
N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz > 25 dB
N/A (Mono version)
Channel Difference < 0.5 dB
< 1.0 dB (Mono version)
Output Voltage @ 5cm/sec > 0.40 mV (LOW)
DC Resistance (DCR) 10Ω
Coil Inductance per channel 2.75 mH
Suggested Preamp Gain 58 - 64 dB
Cartridge Weight 12.2 g (ES series)
Recommended Load Resistance ≥ 470Ω
Recommended Load Capacitance n/a
