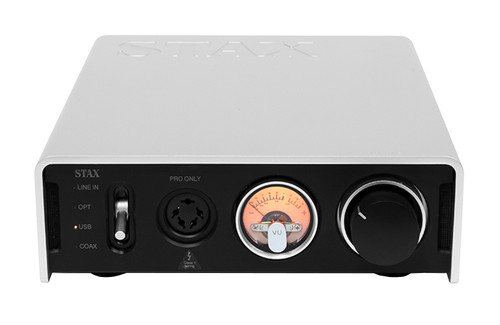

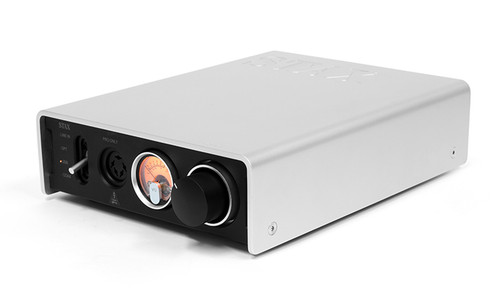

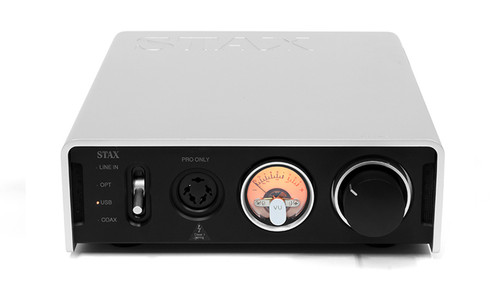

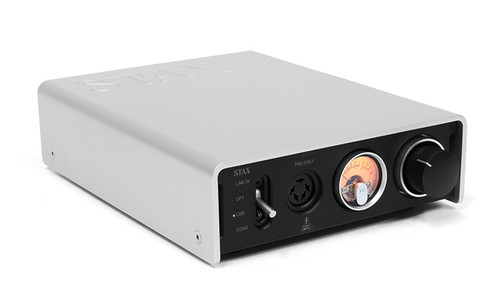

STAX SRM-D50 Desktop Headphone Amp & DAC

$1,259.99

Availability: In Stock
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release 'TBA.' This means that release date is yet 'To Be Announced'. The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.

SKU:
STXSRMD50
UPC:
STXSRMD50
Adding to cart… The item has been added

A High-Performance Electrostatic Driver and Digital-to-Analog Converter all in one!

This item not eligible for any further discount offers!

SPECIAL NOTE: Specifications: 120V, U.S. Version, 1 Year Parts & Labor Warranty. NOTE: All units available on Japanese websites are the 100volt for Japan only models. They have no warranty in the USA, are a potential fire hazard and will have significantly shortened lives due to the 20% over voltage by USA 120V power!!!

The STAX SRM-D50 is a high-performance electrostatic driver and Digital-to-Analog Converter, inspired by the battery-powered SRM-D10.With an elegant all-in-one design, the D50 creates a simple solution for any music lover to experience the legendary sound of Stax earspeakers.

Features

  • Supports various digital inputs such as USB, optical, and coaxial digital input
  • Built-in DAC supports high resolution up to PCM 32/384 KHz or DSD 5.6
  • VU meter displays input strength
  • 4mm thick nonmagnetic aluminum cover.
  • R core power transformer with less leakage flux
  • Standard Stax 5-Pin Connector for all Stax Headphones

Technical Specifications

Frequency response 20Hz - 40kHz (+/-3dB)
Rated Input Level 130mV r.m.s
Maximum Input Level 30V/ RCA, at minimum volume
Maximum Output Voltage 400V RMS (1130Vp-p)
Gain 59 dB
Harmonic distortion 0.025% or less/1kHz-10kHz /When use with SR-L series
Input Impedance 20kO (RCA)
Bias Voltage DC 580V
Digital Input USB (type B) ×1?TOSLINK Optical ×1?COAX RCA ×1
Analog input RCA ×1
Mains voltage AC 110V / 60Hz
Power Consumption 35W
Operating temperature 0 to 35 degrees (Celsius) (less than 90% humidity, non condensing)
Dimension 7.55(W) x 2.63(H) x 10.55(D) inches, 192(W)×67(H)×268(D) mm
Weight 9.9 lbs / 4.5 kg
Warranty 1-year U.S. limited warranty
