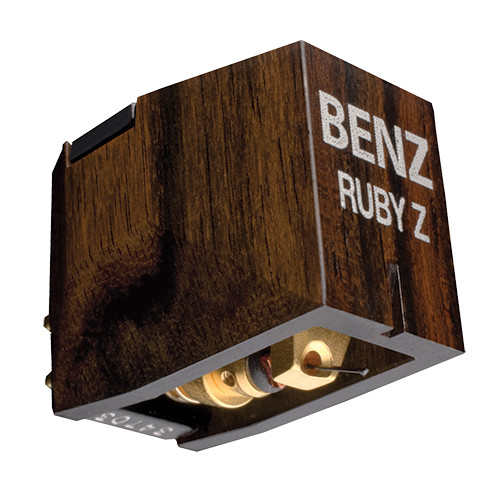

Certified Factory Rebuilt Benz Ruby Z MC Cartridge 0.34mV
Certified Factory Rebuilt Benz Ruby Z MC Cartridge 0.34mV
: Benz

Share:

Certified Factory Rebuilt Benz Ruby Z MC Cartridge 0.34mV

$1,499.99 $3,999.99
(You save $2,500.00)



Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
BENZMCRUBZR
UPC:
BENZMCRUBZR
Only $1499.99! Regularly $3999.99! You Save $2500!
Certified Factory Rebuilt! Fully Tested & Inspected by Peter Ledermann, President/Chief Engineer at Soundsmith!
Hurry, Only 1 Available. Won't Last Long! 1 year warranty included! Satisfaction Guaranteed!


The Benz Ruby Z features the a vented machined Zebra wood body, second only to Ebony for its resonance characteristics, offering bass weight and pitch definition, midrange linearity and high frequency clarity with a natural musicality. The generator is based on the Ruby square plate and output is .34mV. The Ruby Zebra cartridge weighs only 10.7 grams, making it ideal for a wide range of tonearms, including today’s state-of-the-art, and vintage models lacking the energy control, bearing designs, or counter-weight range.

Features:
Ultra Smooth Response Curve
Huge Tight Defined Bass
Round Warm Mids & Crisp Clean Highs
Extremely Wide & Deep Soundstage
Superior 3-D Imaging
Mirror-Plished Lne Contact Stylus
Square Ruby Core

Specifications:
Physical:

Body: Vented machined Zebra wood
Stylus: CL Stylus
Vertical Tracking Angle (VTA): 20 degrees
Coil: Square ruby jewel plate
Weight: 10.7 grams

Electrical:
Output Voltage: 0.34mV at 3.54 cm/s
Internal Impedance: 38 ohms
Frequency Response: 10-50,000 Hz +/- 1 dB
Channel Balance: Better Than 0.5dB
Channel Separation: Better Than 35 dB at 1 kHz

Dynamic:
Tracking Ability at 315 Hz at a Tracking Force of 2 grams: 80 um
Dynamic Compliance: 15 um/mN

Set Up Instructions:
Recommended Loading: 500-47,000 ohms
Recommended Tracking Force: 1.8-2.2 grams
Optimum Tracking Force: 1.8-2.0 grams
Recommended Tonearm Mass: Medium to high
Optimum Working Temperature: 23 Degrees Celsius
Description
Only $1499.99! Regularly $3999.99! You Save $2500!
Certified Factory Rebuilt! Fully Tested & Inspected by Peter Ledermann, President/Chief Engineer at Soundsmith!
Hurry, Only 1 Available. Won't Last Long! 1 year warranty included! Satisfaction Guaranteed!


The Benz Ruby Z features the a vented machined Zebra wood body, second only to Ebony for its resonance characteristics, offering bass weight and pitch definition, midrange linearity and high frequency clarity with a natural musicality. The generator is based on the Ruby square plate and output is .34mV. The Ruby Zebra cartridge weighs only 10.7 grams, making it ideal for a wide range of tonearms, including today’s state-of-the-art, and vintage models lacking the energy control, bearing designs, or counter-weight range.

Features:
Ultra Smooth Response Curve
Huge Tight Defined Bass
Round Warm Mids & Crisp Clean Highs
Extremely Wide & Deep Soundstage
Superior 3-D Imaging
Mirror-Plished Lne Contact Stylus
Square Ruby Core

Specifications:
Physical:

Body: Vented machined Zebra wood
Stylus: CL Stylus
Vertical Tracking Angle (VTA): 20 degrees
Coil: Square ruby jewel plate
Weight: 10.7 grams

Electrical:
Output Voltage: 0.34mV at 3.54 cm/s
Internal Impedance: 38 ohms
Frequency Response: 10-50,000 Hz +/- 1 dB
Channel Balance: Better Than 0.5dB
Channel Separation: Better Than 35 dB at 1 kHz

Dynamic:
Tracking Ability at 315 Hz at a Tracking Force of 2 grams: 80 um
Dynamic Compliance: 15 um/mN

Set Up Instructions:
Recommended Loading: 500-47,000 ohms
Recommended Tracking Force: 1.8-2.2 grams
Optimum Tracking Force: 1.8-2.0 grams
Recommended Tonearm Mass: Medium to high
Optimum Working Temperature: 23 Degrees Celsius
