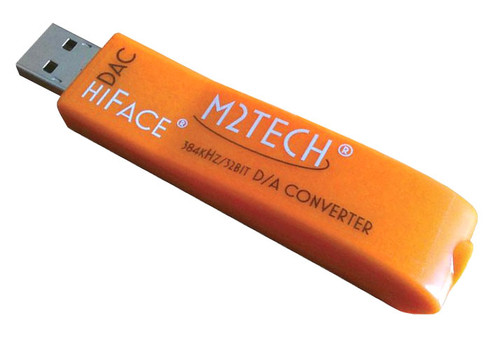

The M2Tech HiFace USB DAC is a Hi-End Async 2.0 Audio Class USB 384/32 DAC. Enjoy the highest quality stereo analog audio up to 384kHz/32bit available on your PC, Mac, Linux computer, iPad or Android tablet. The M2Tech HiFace USB DAC features 2.0Vrms line output level, 112dB THD+N, very low jitter oscillators, asynchronous 2.0 Audio Class USB and also drives most medium- or high-impedance headphones. The M2Tech HiFace USB DAC is the highest value-for your money.
With its compact size (2x1.4x8.8cm), the M2Tech HiFace USB DAC has been conceived to bring hi-end equipment performance to the budget conscious audiophile, without any compromise on quality. One hiFace DAC and a laptop, Mac Mini or even an iPad make for a hi-end music file source at the cost of a middle range digital interconnect.
The M2Tech HiFace USB DAC includes all necessary features to be the perfect DAC for all kind of hi-fi systems: asynchronous data transfer mode on USB 2.0, compliancy to USB 2.0 Audio Class (no drivers needed for MacOS, IOS, Linux and Android), very low phase noise oscillators and last-generation conversion IC capable of 384kHz and 23 bits.Windows users will enjoy it in Direct Sound, Kernel Streaming, WASAPI and ASIO (depending on the OS version), while Mac users will be able to take advantage from Integer mode and Direct mode.
While the M2Tech HiFace USB DAC output is purposely designed to give its best with amplifiers and preamplifiers line level inputs, it may also be used to drive medium- and high-impedance headphones: try it with iPhones in-ear headphones.
1) LOW JITTER, LOW PHASE NOISE, HIGH STABILITY OSCILLATORS Most audio interfaces and USB-provided DACs refer the data stream clock to the same USB interface clock, that often suffers a very heavy jitter (short range oscillator frequency variations). Thanks to two quartz precision oscillators used on M2Tech hiFace DAC, clock source for internal interface to the conversion IC features a very low jitter. Low jitter produces a very limited sound image distortion and degradation. Phase noise (main responsible for jitter) is also very low: this guarantees a short and long range clock stability, also reinforced by a board supply voltage regulation (e.g. at environmental temperature stability is 2-5ppm approximately, compared to 50-100ppm performed by oscillators normally used on commercial CD players).
2) USB 2.0 AUDIO COMPLIANCE No need for custom driver. Using the hiFace DAC is very easy. Just connect it to your Mac, iPad or Linux computer and it will be immediately visible in the devices list and ready to use. A driver is still necessary for Windows computers, which enables for DS, KS, WASAPI and ASIO mode.
3) COMPACT SIZE, EASE OF USE AND VERY HIGH PERFORMANCE M2Tech hiFace DAC features a very compact size and can be directly (or using an accessory USB A-A adapter, not supplied with hiFace) connected to a High Speed USB 2.0 port of any computer or tablet. A 3.5mm stereo jack socket provides an output stereo line-level signal, ready to be connected to a Hi-End system. No external power supply is required, as hiFace DAC draws its power from USB bus itself and regulates it with its internal regulators. hiFace DAC connected to a last generation mini PC provided with a High Speed USB port makes for a complete digital music source at very low prices (in the range of few hundreds Euros). Such system allows for listening any density and resolution music files (up to 384/32!), playing own CD's using a CD ROM drive, obtaining access to more than 10,000 web radio, many of which broadcast their transmissions with CD quality.
Connections: Input 1 x USB A type male, Output 1 x 3.5mm stereo jack socket
Standard: Input USB 2.0 Audio Format, Output stereo analog
Sampling Frequency: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4khZ, 192kHz, 352.8kHz, 384kHz
Resolution: 16 up to 32 bit
Output voltage: 2.0Vrms @10kOhms
Frequency response: 5-22kHz (fs=44.1kHz), 5-150kHz (fs=384kHz) THD+N: 112dB (@ 1kHz, A-weighted)
Dimensions: 8.8" (d) x 1.4" (h) x 2" (w)
Power Supply: 5V DC from USB bus
Temperature: 0°C to 70°C
Weight: 20gr approx.
Click Here for the M2TECH HiFace USB DAC manual!
