Music Hall Tracker Stylus
Music Hall Tracker Stylus

Share:

Music Hall Tracker Stylus

$50.99 $59.99
(You save $9.00)



Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
MHMMTRACKS
UPC:
013964663303

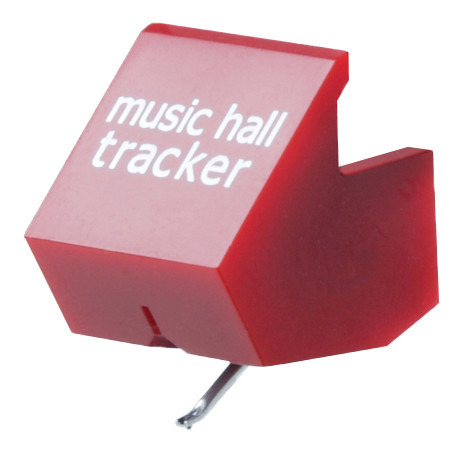

Replacement Stylus for Music Hall Tracker Cartridge

The music hall tracker is designed and built by Goldring to music hall’s specifications. This moving magnet design is an amazing value.

The tracker is an affordable moving magnet phono cartridge which incorporates several audiophile features. Tracking ability is excellent and this cartridge incorporates an elliptical stylus tip to get deep into the grooves.

The low-mass cantilever assembly has a surprisingly wide ranging compatibility with the best tonearms and turntables available.

Tracker Cartridge Specifications

frequency response 20Hz-20kHz±3dB
channel balance 2dB @ 1kHz
channel separation 20dB @ 1kHz
sensitivity 5mV±2dB
static compliance 16mm/N
equivalent tip mass 0.7 mg
stylus type elliptical (user replaceable)
load resistance 47 kOhm
load capacitance 150-400pF
internal inductance 560 mH
internal resistance 700 ohm
weight 4.2g
tracking force 1.5-2.0g (1.7g recommended)
Description

Replacement Stylus for Music Hall Tracker Cartridge

The music hall tracker is designed and built by Goldring to music hall’s specifications. This moving magnet design is an amazing value.

The tracker is an affordable moving magnet phono cartridge which incorporates several audiophile features. Tracking ability is excellent and this cartridge incorporates an elliptical stylus tip to get deep into the grooves.

The low-mass cantilever assembly has a surprisingly wide ranging compatibility with the best tonearms and turntables available.

Tracker Cartridge Specifications

frequency response 20Hz-20kHz±3dB
channel balance 2dB @ 1kHz
channel separation 20dB @ 1kHz
sensitivity 5mV±2dB
static compliance 16mm/N
equivalent tip mass 0.7 mg
stylus type elliptical (user replaceable)
load resistance 47 kOhm
load capacitance 150-400pF
internal inductance 560 mH
internal resistance 700 ohm
weight 4.2g
tracking force 1.5-2.0g (1.7g recommended)
