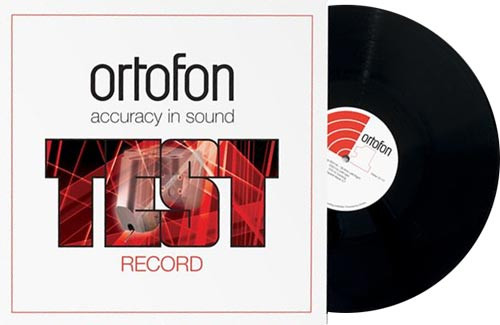

Ortofon Stereo Test Record 180g LP
Ortofon Stereo Test Record 180g LP Ortofon Stereo Test Record 180g LP
Genre: Test Disc
Label: Ortofon
Format: 33RPM,

Share:

Ortofon Stereo Test Record 180g LP

$49.00



Availability : information In Stock
IN STOCK
An In Stock item is available to ship normally within 24 business hours.

PREORDER
A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release “TBA.” This means that release date is yet “To Be Announced”. The Preorder can be released anywhere between weeks, months or years from its initial announcement.

OUT OF STOCK
An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of.

EXPECTED ON
When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description.

SPECIAL ORDER
A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
ORTLPTEST
UPC:
ORTLPTEST
HiFi System & Cartridge Test LP!

This item not eligible for any further discount offers!

Ortofon’s new Test Record is designed to allow you to verify your HiFi system in the most natural audio surroundings at home. The Test Record contains special test signals developed for analyzing cartridge performance as well as its interaction with your tonearm and turntable.

Before testing your cartridge, please verify the HiFi system’s functionality. The left speaker should be connected to the left amplifier channel and vice versa; both speakers should work in phase and be optimally positioned in the room.

The Test Record is designed to be played through your system with in-built RIAA equalization. Volume control is recommended to be set at a moderate signal level.

Please refer to your turntable and tonearm’s instructions for correct installation and alignment, adjust tonearm to be parallel to record surface, set Vertical Tracking Force and antiskating according to the cartridge’s recommended technical data, and adjust stylus overhang.

1-4 Frequency sweep – a tool for checking frequency response
There are several factors which can affect frequency response, including cable capacitance, cartridge loading, tracking force and worn parts. Because of this, it can be difficult to achieve perfectly flat frequency response. Sometimes by making small compromises in the cartridge loading, a better overall frequency response can be achieved. Considering the above the signal must be clean throughout the sweep.

5-8 Reference tone for testing channel output
With this standard reference signal is it possible to check the correctness of the connections of the left and right channels, channel balance and speed of the turntable.

9-14 Tracking ability test, 315 Hz lateral modulation
These tracks contain a 315 Hz signal, recorded at increasing pick amplitudes of 50, 60, 70, 80, 90 and 100 micrometers. Please refer to your cartridge’s tracking ability value specified in the technical data sheet. Your cartridge should be able to track the actual level without audible distortion. Inability to track can be heard as a departure from a pure tone or a sputtering and intermittent tone. To determine if it is one or both channels, the balance control can be utilized. In case of differing tracking ability in the left and right channels it is probably necessary to readjust the anti-skating correction of the tonearm. If both channels fail to track properly, then vertical tracking force should be increased until no further improvement of tracking force can be obtained.

15. Square Wave Form 2.7 msec duty cycle 3:7
When monitoring the output of your cartridge with an oscilloscope you’ll then see a square wave located precisely above each other if the connection from the cartridge is correct.

After successful completion of the above test procedures, you can ensure that your cartridge is optimized. Still the human ear is very sensitive to difference in tone distortion; its level depends on the stylus condition and record wear.

To maintain optimal sound reproduction and to minimize wear on your records as well as on your stylus, Ortofon recommends the following procedure before and after each playback:
• Remove dust carefully from record surfaces by using a fine antistatic brush or cloth before every use.
• Please remember to remove dust from the diamond tip before and after playback of each record
• In order to keep electrical contacts clean and to lubricate the knurled nut on the tonearm, Ortofon recommends occasionally a light spray of contact cleaner like DeoxIT ®Gold G-Series into the tonearm socket.

It should be noted that some phono equalizers may generate some tone distortion, which cannot be referred to the cartridge.

The Tests:
Each side of the record consists of 15 tracks which have been cut from 1-4 and 5-15:
1. Frequency Sweep Left Channel 800 Hz – 50 kHz. 28 sec. (800 – 20000 Hz ±1,5 dB)
2. Frequency Sweep Right Channel 800 Hz – 50 kHz. 28 sec. (800 – 20000 Hz ±1,5 dB)
3. Frequency Sweep Left Channel 800 Hz – 50 kHz. 28 sec. (800 – 20000 Hz ±1,5 dB)
4. Frequency Sweep Right Channel 800 Hz – 50 kHz. 28 sec. (800 – 20000 Hz ±1,5 dB)
5. Reference tone 1000 Hz 5 cm/sec rms Left
6. Reference tone 1000 Hz 5 cm/sec rms Right
7. Reference tone 1000 Hz 5 cm/sec rms Left
8. Reference tone 1000 Hz 5 cm/sec rms Right
9. Tracking ability, lateral 50 µm peak
10. Tracking ability, lateral 60 µm peak
11. Tracking ability, lateral 70 µm peak
12. Tracking ability, lateral 80 µm peak
13. Tracking ability, lateral 90 µm peak
14. Tracking ability, lateral 100 µm peak
15. Square Wave duty Cycle 3:7
* The record has a constant velocity amplitude throughout the sweep.

Corrective Note:
For information about Tracks please refer to the User manual and Ortofon web: each side of the record consists of 15 tracks which have been cut from 1-4 and 5-15.
