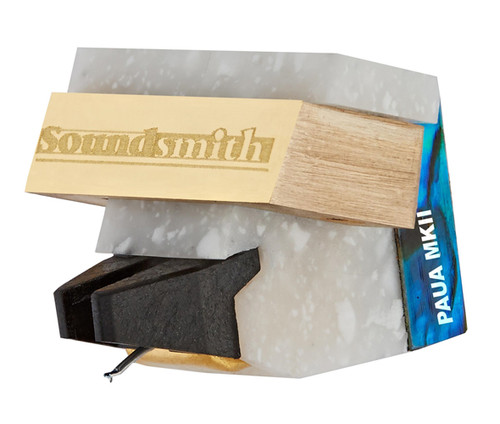

Soundsmith Paua MkII MI Cartridge 0.4mV (CL Stylus, Low Compliance)
Soundsmith Paua MkII MI Cartridge 0.4mV (CL Stylus, Low Compliance)

Share:

Soundsmith Paua MkII MI Cartridge 0.4mV (CL Stylus, Low Compliance)

$3,999.99



Availability: Discontinued
In Stock An In Stock item is available to ship normally within 24 business hours.
Preorder A Preorder is an item that has not yet been released. Typically the label will set a projected release date (that is subject to change). If a projected release date is known, we will include this in the description in red. Other Preorders are set to release "TBA." This means that release date is yet "To Be Announced". The Preorder can be released anywhere between weeks, months or years from its initial announcement.
Backordered An Out Of Stock item is an item that we normally have available to ship but we are temporarily out of. We do not have a specific date when it will be coming.
Awaiting Repress Awaiting repress titles are in the process of being repressed by the label. No ETA is available at this time.
Expected On When an item is Out Of Stock and we have an estimated date when our stock should arrive, we list that date on our website in the part's description. It is not guaranteed.
Special Order A Special Order item is an item that we do not stock but can order from the manufacturer. Typical order times are located within the product description.
SKU:
SSMIPAU2CL
UPC:
SSMIPAU2CL


Limited Quantities Available!
Only $1999.99! Regularly $3999.99! You Save $2000!


An Unparalleled Warranty! Retip is only $550 and is guaranteed for 2 Full Years!

The NEW Paua MKII: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.

The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an "Editor's Choice Award" in 2015 from TAS. Now Soundsmith introduces the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII's cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The reult is an even better Paua, a cartridge that gets raves from its owners, and can be fully rebuilt many times for $550 - a fraction of its original cost - as with all Soundsmith cartridges - 20% or less.

Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.

Soundsmith have accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.

Also available in dual-coil mono, as with all Soundsmith Fixed Coil designs.

"If I had to live with just one cartridge, I would choose the Paua..." - Jeff Dorgay, TONEaudio No. 36, April 2011

An Unparalleled Warranty:
The Paua Cartridge is covered for 2 full years. Retip is less than 20% of the retail ($550). An absolutely unheard of warranty for cartridges. Made in the USA, the Soundsmith cartridges are the best long term values around!

Features:
• Fixed Coil Cartridge Type
• Contact Line Stylus Type
• Low Output
• .4 mV Output Voltage
• Available as Dual Coil Mono
• Workmanship on this product is warranted for 2 full years

Specifications:
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Nude Contact Line SELECTED
Cantilever: Telescoping Aluminum Alloy
Recommended tracking force: 1.7 to 1.9 grams
Effective tip mass: 0.30 mg
Compliance: 10 µm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo), <1.0 dB (Mono)
Output Voltage: Greater than or equal to 0.4 mV
DC Resistance (DCR): 10-11 ohm each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Stylus to Mounting Hole Offset: approximately 10mm (0.4")
Loading: Greater than or equal to 470 ohm

2 Year Warranty
Retip: $550
Description


Limited Quantities Available!
Only $1999.99! Regularly $3999.99! You Save $2000!


An Unparalleled Warranty! Retip is only $550 and is guaranteed for 2 Full Years!

The NEW Paua MKII: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.

The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an "Editor's Choice Award" in 2015 from TAS. Now Soundsmith introduces the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII's cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The reult is an even better Paua, a cartridge that gets raves from its owners, and can be fully rebuilt many times for $550 - a fraction of its original cost - as with all Soundsmith cartridges - 20% or less.

Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.

Soundsmith have accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.

Also available in dual-coil mono, as with all Soundsmith Fixed Coil designs.

"If I had to live with just one cartridge, I would choose the Paua..." - Jeff Dorgay, TONEaudio No. 36, April 2011

An Unparalleled Warranty:
The Paua Cartridge is covered for 2 full years. Retip is less than 20% of the retail ($550). An absolutely unheard of warranty for cartridges. Made in the USA, the Soundsmith cartridges are the best long term values around!

Features:
• Fixed Coil Cartridge Type
• Contact Line Stylus Type
• Low Output
• .4 mV Output Voltage
• Available as Dual Coil Mono
• Workmanship on this product is warranted for 2 full years

Specifications:
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Nude Contact Line SELECTED
Cantilever: Telescoping Aluminum Alloy
Recommended tracking force: 1.7 to 1.9 grams
Effective tip mass: 0.30 mg
Compliance: 10 µm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo), <1.0 dB (Mono)
Output Voltage: Greater than or equal to 0.4 mV
DC Resistance (DCR): 10-11 ohm each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Stylus to Mounting Hole Offset: approximately 10mm (0.4")
Loading: Greater than or equal to 470 ohm

2 Year Warranty
Retip: $550
