This item not eligible for any further discount offers!
SPECIAL NOTE: Specifications: 120V, U.S. Version, 1 Year Parts & Labor Warranty. NOTE: All units available on Japanese websites are the 100volt for Japan only models. They have no warranty in the USA, are a potential fire hazard and will have significantly shortened lives due to the 20% over voltage by USA 120V power!!!
The STAX SR-003 MK2 and SRM-252S Combo provides comfort with design, leaving the ears clear of all external restrictions and perspiration that may result from heavy earpad type headphones. Great combo for SACD/XRCD listening!
Ultimate In Personal High-End Systems
Following the success of the SR-001 In-The-earspeaker system, a world wide first, STAX are proud to announce the SRS-005 system for Home Audio use. STAX has received many requests for Earspeakers that can produce many hours of comfortable listening without compromising sound quality.
Pro Bias Connection

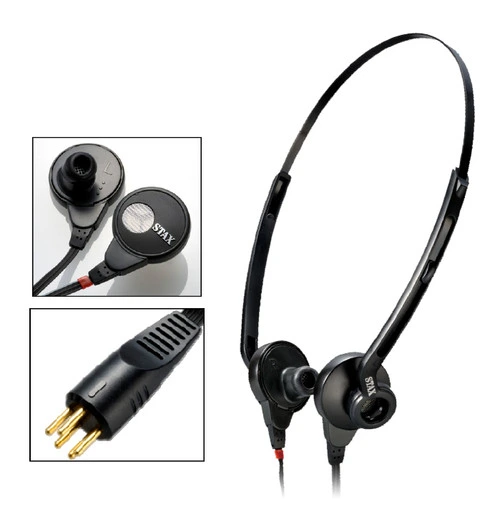

The STAX SR-003 MK2 is the home audio version of S-001 MK2 Earspeaker with a 5-pin plug connector suitable for any STAX driver unit or adaptor with "Pro" capability.
Comfortable and Light Weight
The SR-003 MK2 In-the-Earspeaker utilizes thinner diaphragm material. Lighter by 15% over the pervious models S-001 and S-001MK2. Redesigned ear piece for comfort. New earbuds in 3 sizes. With the STAX SR-003 MK2 earphones, comfort is the key feature, leaving the ears clear of all external restrictions and perspiration that may result from heavy earpad typed.
SR-003 MK2 Specifications:
Type: Push-Pull Electrostatic canal-type In-The-Earspeaker
Frequency Response: 20 - 1kHz +/- 2dB, 1kHz to 20kHz +/- 4dB
Impedance: 360k Ohms (10kHz)
Sensitivity: 111dB / 100V r.m.s. 1 kHz
Bias Voltage: 550-580V DC
Left & Right Channel Identification: Displayed inside the detachable body. Left: Solid line on cable Right: Dottel line on cable
Ear Pads: Silicone earbuds in three sizes
Cable: 5-Pin for STAX PRO bias, 6-core parallel 1.5m / 4.9ft
Ambient Temperature & Humidity: 0 to 35ºC / 90% max. without condensation
Recommended Driver: STAX SRM-252S
1 Year Parts and Labor Warranty.

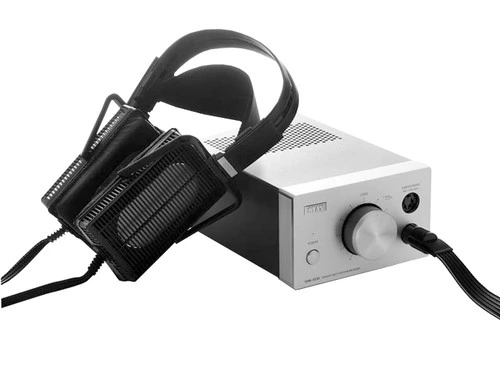

The STAX SRM-252S Headphone Amp is an exclusive driver unit for driving the STAX Ear Speakers with PRO-Bias 5 Pins. The SRM-252S Headphone Amp's line input can directly connect to the audio output terminal of CD Players, Portable Audio Players or your PC.
The STAX SRM-252S Headphone Amp has a simple design that excels in sound quality employing the carefully selected newest high-voltage transistors and low-noise FETs. The output stage featuring the emitter-follower configuration reinforces the driving performance and also realizes the smooth sound quality. Moreover, the Class-A Amplification throughout the stages with no coupling capacitors reproduces exhaustively the finest nuance of music. Although the STAX SRM-252S Headphone Amp includes a Class-A DC Amplifier in a compact CD Jacket Size Case, the internal heat is effectively dissipated through the chassis of aluminum extrusion material to improve the reliability over a long period of time. Also, the parallel output terminal was added to distribute the source signal so that a loud speaker may also be simultaneously used when source equipment has only a pair of output terminals.
Frequency Response: DC-35kHz (40V r.m.s. output, when used with STAX SR-003 MK2 Ear Speakers.)
Gain: 58dB (about 800 times)
Harmonic Distortion: 0.01% (at 100V r.m.s./1kHz output with STAX SR-003 MK2 Ear Speakers.)
Input Impedance: 50kOhms
Rated Input Level: 125mV (100V output)
Maximum Output Voltage: 280V r.m.s.
Operating Temperature: 0-35 degrees C (non-condensing)
Dimensions (mm): 132 (W) x 38 (H) x 132 (D)
Dimensions (approx., in): 5 (W) x 1.5 (H) x 5 (D)
Weight: 540g (approx., 1.19lbs)
Power Consumption: DC 12V/4W (when using supplied AC adaptor)
Accessory: AC Power Adaptor
1 Year Parts and Labor Warranty.
